With the development of the industrial economy, the discharge volume of industrial wastewater continues to increase, featuring relatively complex water quality components. Consequently, the requirements for wastewater treatment equipment are also constantly rising. As a key piece of equipment in industrial wastewater treatment, the drum filter has become an important choice for many enterprises due to its highly efficient suspended solids removal capability. However, not all drum filters can adapt to the complex operating conditions of industrial wastewater. They must meet multi-dimensional requirements to ensure treatment effectiveness and operational stability.

I. Industrial wastewater treatment Rotary drum filter must meet these core requirements:

The core function of Rotary drum filter is to remove suspended solids from wastewater. They must be tailored to the specific parameters of industrial wastewater to prevent equipment inefficiency or damage.

(I) Performance Matching

1. Matching Filtration Precision with Treatment Capacity

(1) Precision must be determined based on subsequent wastewater treatment requirements: For pretreatment, precision typically requires 30–200 μm; for deep filtration, precision must be ≤10 μm.

(2) Treatment capacity must cover the facility's “maximum wastewater discharge volume plus fluctuation margin” to prevent effluent exceedances caused by influent shock loads.

2. Corrosion Resistance

(1) Material selection must match wastewater pH levels: Neutral wastewater may use 304 stainless steel; Strongly acidic or alkaline wastewater requires 316L stainless steel, carbon steel lined with epoxy resin, or specialized anti-corrosion coatings (e.g., PTFE).

(2) If wastewater contains chloride ions, avoid ordinary carbon steel to prevent “pitting corrosion.” Prioritize duplex steel or 316L stainless steel.

3. Anti-clogging and Contaminant Tolerance

(1) For high-viscosity, scale-prone wastewater, incorporate “anti-adhesion design”: e.g., use smooth polyester/nylon filter media or implement high-frequency backwashing to prevent clogged pores that reduce treatment efficiency.

(2) For wastewater containing fibrous or hair-like contaminants, install a “pre-treatment screen” upstream or adopt a two-stage filtration system with a “coarse-pore pre-filter + fine filter” to prevent debris entanglement around the drum.

(II) Operational Stability

Industrial wastewater treatment requires 24/7 continuous operation, making equipment stability critical.

1. Continuous Operation Capability and Automated Control:

(1) Supports unattended continuous operation: Requires automatic unloading and backwashing to avoid frequent shutdowns for manual cleaning, with a continuous operation rate ≥95%;

(2) Intelligent control system: Enables parameter monitoring via PLC + touchscreen and features “abnormal alarm” functionality.

2. Structural Reliability and Serviceability

(1) Core components must utilize wear-resistant and fatigue-resistant materials;

(2) Equipment must incorporate dedicated “maintenance access points” to minimize downtime for servicing.

(III) Economic Requirements

Industrial wastewater treatment must balance “effectiveness” and “cost,” with equipment meeting economic viability throughout its entire lifecycle.

1. Low Energy and Water Consumption

(1) Operational Energy: Select energy-efficient motors for drum drives, vacuum pumps, and backwash pumps; ensure individual unit power consumption aligns with treatment capacity.

(2) Backwash Water Consumption: Limit backwash water usage to ≤1% of treated water volume. Prioritize designs utilizing “recycled filtered water for backwashing” to minimize fresh water consumption.

2. Low Consumables and Low O&M Costs

(1) Filter Screen Lifespan: Based on wastewater quality, filter screen lifespan must be ≥6 months or 3 months, with low replacement costs;

(2) No Additional Chemical Consumption: Unless required for special needs, equipment should not rely on chemicals to avoid increasing chemical procurement and subsequent sludge treatment costs.

II. Recommended Premium Drum Filter Manufacturers in China: Tailored for Industrial Needs, Each with Core Advantages

Based on the above requirements, a number of domestically based drum filter manufacturers with mature technology and reliable products have emerged. Their products not only meet the core requirements for industrial wastewater treatment but also demonstrate distinct advantages in specialized applications.

(I) Xinxiang Yinuo Machinery

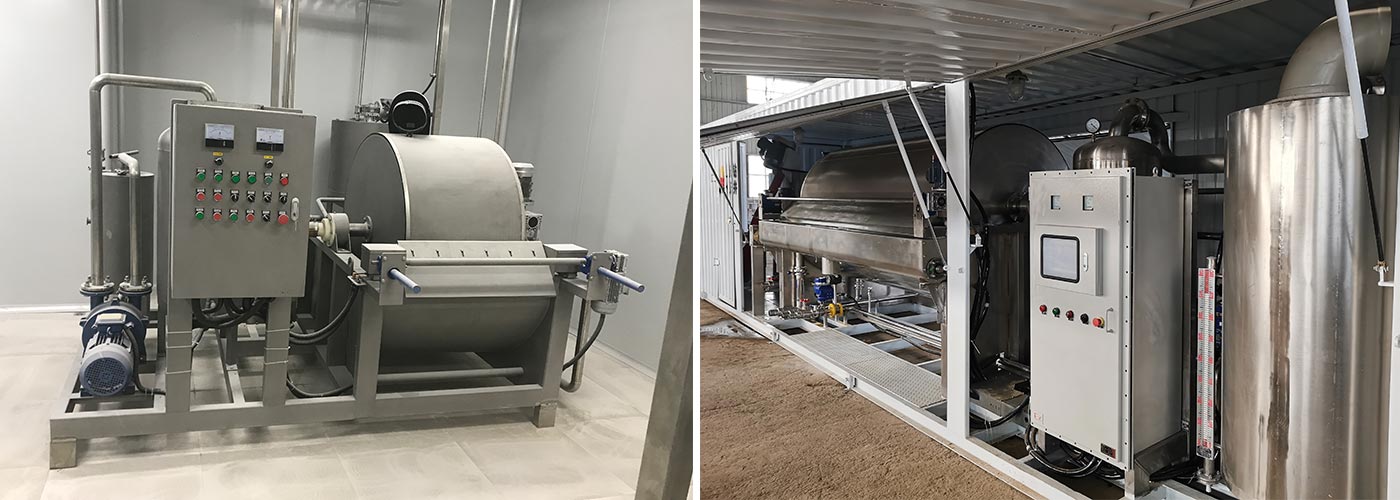

Yinuo Machinery's rotary drum filter is specifically designed for industrial wastewater with high turbidity and high suspended solids, making it the preferred choice for enterprises seeking efficient filtration. Its core advantages include:

1. High Adaptability: Employing external vacuum adsorption technology with a filtration precision range of 5-100μm, the filter allows flexible replacement of polyester, nylon, or stainless steel mesh screens. It consistently maintains effluent suspended solids (SS) at 5-10mg/L, meeting requirements for subsequent biological treatment or reuse pretreatment. The main body is available in Q235 carbon steel with anti-corrosion coating (epoxy resin lining) or 304/316L stainless steel, withstanding corrosion from acidic/alkaline wastewater with pH values ranging from 3 to 11. Treatment capacity is customizable based on enterprise scale, ranging from small single units at 5m³/h to multi-unit parallel configurations at 100m³/h, accommodating wastewater treatment needs across enterprises of varying scales.

2. High Operational Efficiency: Leveraging continuous rotary vacuum adsorption and automatic scraper discharge design, the equipment achieves over 95% continuous operation rate. Backwash water consumption accounts for only 0.5%-1% of treated water volume, significantly outperforming traditional equipment. Paired with a variable frequency control system, it dynamically adjusts vacuum levels between -0.04 and -0.08 MPa. Single-unit power consumption ranges from 2.2 to 15 kW, achieving 15%-20% energy savings compared to similar equipment.

3. Low Maintenance Costs: Equipped with an intelligent PLC control system that monitors parameters in real time and triggers automatic alarms, while also integrating with central control systems. Wear parts are easy to replace, components are highly interchangeable, and long-term maintenance costs are low. Suitable for wastewater treatment applications in mineral processing (slag removal), chemical plants (crystallized salt removal), and food processing (residue removal).

(II) Shandong Shunchang Environmental Protection

Shandong Shunchang Environmental Protection's drum-type precision filter excels in advanced treatment applications with distinct core advantages:

1. High filtration precision ensures compliant effluent: Filtration accuracy ranges from 30-200μm, delivering effluent SS < 10mg/L to meet industrial wastewater advanced treatment and reuse standards; The entire unit is constructed from 304 stainless steel, offering acid/alkali resistance, aging resistance, and low failure rates. Premium core components ensure stable and reliable operation.

2. Water and energy savings with low operating costs: Continuous filtration design combined with low-water-consumption backwashing achieves over 30% water savings compared to traditional equipment. Compact structure with minimal ancillary components reduces footprint and infrastructure investment, making it ideal for industries demanding high effluent quality, such as electronics and textile dyeing. 3. Diverse Models, Flexible Adaptability: Four main product categories—500, 800, 1000, and 1400—allow rapid selection based on enterprise wastewater treatment scale, eliminating complex customization.

(III) Wuxi Juhuan Environmental Protection

Wuxi Juhuan Environmental Protection's drum-type precision filter is optimized for highly corrosive wastewater scenarios such as chemical processing, with key advantages including:

1. Exceptional Corrosion Resistance: Utilizing 304 stainless steel mesh paired with patented anti-corrosion coating technology, it withstands chemical wastewater corrosion across pH ranges of 2-12. This addresses equipment damage caused by highly acidic or alkaline wastewater. For instance, a chemical enterprise in Jiangsu operated this equipment for 12 months without experiencing corrosion or clogging issues.

2. Customization and Stability: Processing capacity ranges from 50 to 500 m³/h, supporting customization based on actual wastewater flow rates. The backwash system achieves a 35% water savings rate, ensuring stable continuous operation suitable for complex wastewater treatment scenarios in chemical, pharmaceutical, and other industries.

Summary

Rotary drum filter for Industrial Wastewater Deliver Multiple Benefits to Enterprises

Selecting drum filters tailored to industrial wastewater treatment needs not only efficiently resolves enterprises' wastewater challenges but also advances comprehensive sustainable development goals.

1. Ensuring Environmental Compliance: Rotary drum filter efficiently remove suspended solids from wastewater, guaranteeing effluent parameters like SS meet national or industry standards. This helps enterprises avoid risks such as fines or production halts due to non-compliant discharges, supporting compliant operations.

2. Reducing Operational Costs: In the short term, the equipment's low-energy, low-water-consumption, and low-consumables design minimizes expenses for electricity, water, and maintenance. Long-term, some systems enable wastewater reuse, lowering fresh water procurement costs while reducing sludge generation and disposal expenses, thereby enhancing economic efficiency.

3. Achieve Sustainable Costs: By efficiently treating industrial wastewater, Rotary drum filter minimize environmental pollution and promote resource recovery. This helps businesses establish an eco-friendly image and achieve sustainable development.

As industrial wastewater treatment requirements continue to rise, Rotary drum filter will evolve toward greater efficiency, intelligence, and environmental sustainability, providing stronger support for the green transformation of industrial enterprises.

This concludes our introduction to drum filters for industrial wastewater treatment. Yinuo Machinery specializes in manufacturing vacuum drum filters. Interested customers are welcome to email us for inquiries. We offer professional services to ensure a worry-free purchasing experience.
