Product Introduction

The Continuous rotary drum filter, as a highly efficient solid-liquid separation device, plays a vital role across multiple industries including chemical processing, food production, pharmaceutical manufacturing, and wastewater treatment. Its operating principle involves utilizing vacuum suction to effectively trap solid particles from suspensions onto the filter medium, thereby achieving efficient solid-liquid separation.

Working Principle and Process

The continuous rotary drum filter operates primarily through vacuum filtration, encompassing the following key steps:

1. Filtration Process: The drum is immersed in the suspension. As the drum rotates, vacuum forces the liquid through the filter medium while solids are retained to form a filter cake. Drum Rotation: The drum section is partially submerged in the suspension and rotates slowly. Its surface is covered with a filter medium, such as filter cloth. A vacuum pump creates suction inside the drum, generating negative pressure on its surface. This process draws liquid components from the suspension through the filter medium, while solid particles are trapped by the medium and gradually accumulate on its surface, ultimately forming a filter cake.

2. Filter Cake Formation and Washing: As the drum continues rotating, solid particles intercepted by the filter medium accumulate continuously, eventually forming a dense filter cake layer on the drum surface. Washing (Optional): In specific applications, a washing device may be employed to remove residual liquid or impurities from the filter cake.

3. Drying and Discharge: As the drum continues rotating, the filter cake undergoes further drying due to vacuum suction. Upon completion of drying, the filter cake is scraped off the drum using a scraper, roller, or other discharge equipment and collected into a discharge trough.

4. Filter Media Cleaning: After each drying cycle, the filter media undergoes thorough cleaning through a dedicated washing device. This process removes solid particles and impurities to ensure sustained filtration efficiency.

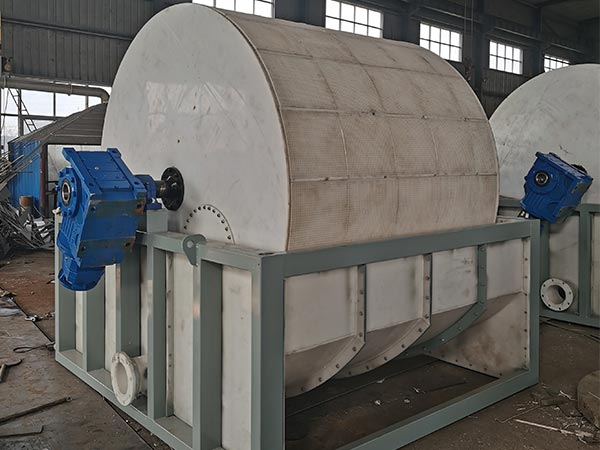

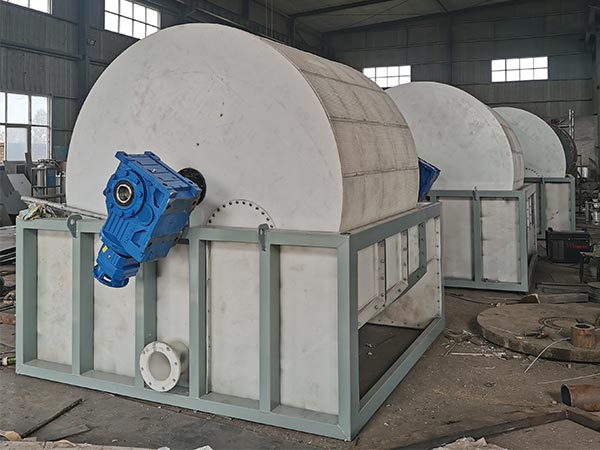

Equipment Structure and Process Characteristics of Continuous Rotary Drum Filters:

The continuous rotary filter primarily consists of the following core components working in concert to complete the filtration process:

Core Components and Functions:

Drum: Typically made of metal or composite materials, its surface is coated with a specialized filter medium to trap solid particles.

Vacuum System: This system encompasses vacuum pumps, vacuum piping, and vacuum tanks. Its primary task is to generate the required vacuum level, providing the driving force for the filtration process.

Drive Assembly: Includes the motor, reducer, and transmission components. These work together to ensure the drum rotates smoothly and efficiently.

Scraper or Discharge Device: After filtration is complete, this device acts on the drum surface to scrape off the adhered filter cake for subsequent processing.

Washing Device: Certain models of drum vacuum filters incorporate this feature, enabling further washing of the filter cake to enhance product purity.

Filter Media Cleaning Device: This unit facilitates periodic cleaning of the filter media, ensuring sustained optimal filtration performance.

Process Features:

The continuous rotary drum filter enables a complete process cycle encompassing continuous feeding, filtration, washing, drying, and discharge, significantly enhancing operational efficiency.

It demonstrates exceptional adaptability by processing both high- and low-concentration suspensions. Utilizing vacuum suction and drying technology, the moisture content of the filter cake can be reduced to minimal levels, meeting the demands of high-purity separation. Furthermore, the equipment features a compact structure that not only saves space but also facilitates installation. Its low energy consumption and straightforward maintenance requirements contribute to reduced overall operating costs.

Applications of Continuous Rotary Drum Filters:

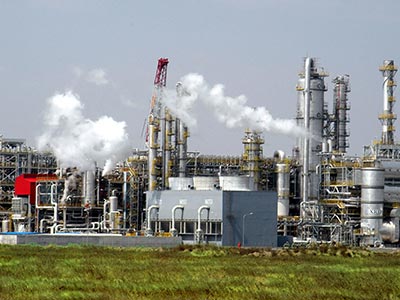

1. Chemical Industry Applications: Rotary drum vacuum filters demonstrate broad applicability across chemical sectors, effectively handling solid-liquid separation processes for inorganic salts, dyes, pigments, and fertilizers.

2. Food Industry Applications: In food processing—such as starch production, juice extraction, and brewing—this equipment plays a vital role in ensuring efficient solid-liquid separation.

3. Pharmaceutical Industry Applications: Solid-liquid separation in pharmaceutical manufacturing relies heavily on drum vacuum filters. They deliver high-efficiency separation for antibiotics, vitamins, and traditional Chinese medicine extraction.

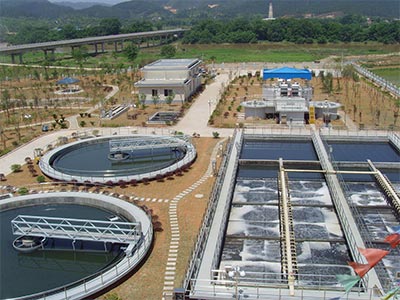

4. Wastewater Treatment Applications: In urban sewage treatment plants and industrial wastewater facilities, this equipment is frequently employed for sludge dewatering, delivering remarkable results.

5. Mining Industry Applications: In mining operations such as mineral processing and tailings management, the drum vacuum filter plays an indispensable role, effectively achieving solid-liquid separation.

Continuous Rotary Filter Manufacturer

The continuous rotary drum filter boasts broad applicability, delivering outstanding solid-liquid separation performance across multiple industries. Its efficient dewatering capability and stable performance characteristics secure its vital role in numerous sectors. Continuous operation and extensive versatility significantly enhance operational efficiency. The filter cake's moisture content can be reduced to minimal levels, aligning with energy-saving and environmentally friendly principles. The equipment features a compact design with a small footprint, making it suitable for diverse production environments.

Yinuo Machinery has dedicated years to the vacuum drum filter industry. Through precise control of equipment processes, every unit leaving our factory withstands real-world production testing, ensuring consistent and reliable quality. We also provide attentive after-sales service to fully safeguard your production operations. For inquiries regarding equipment selection, customization, or collaboration details, feel free to contact us anytime. We offer professional solutions tailored to your needs!
