Product Description:

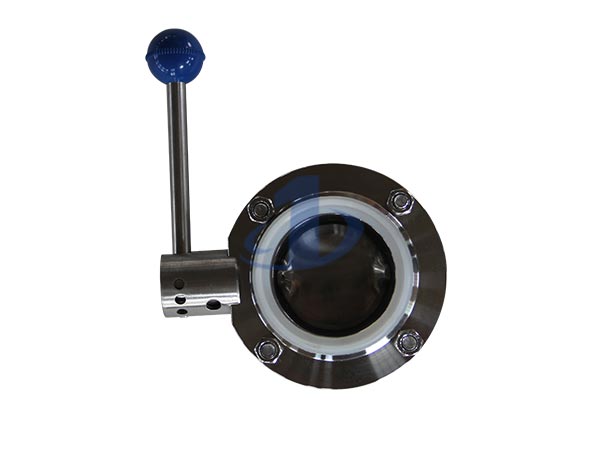

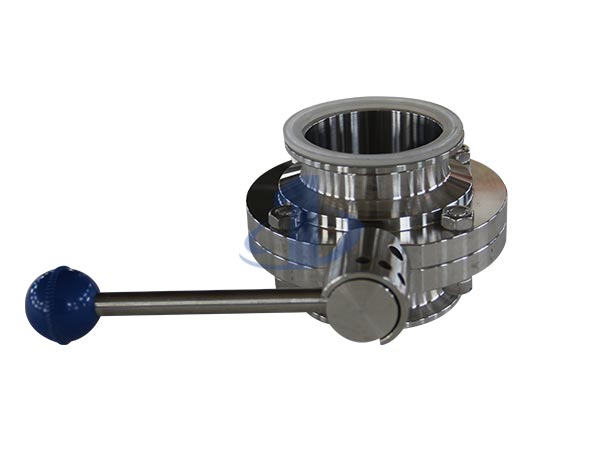

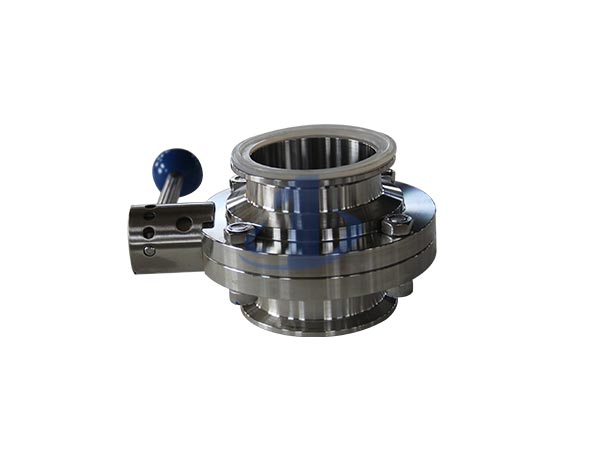

304 stainless steel block butterfly valve, made of stainless steel material, has good durability and corrosion resistance, and can well meet the high hygiene requirements of food, pharmaceutical and other industries.

Product Introduction:

Structural Principle: The 304 stainless steel block-type butterfly valve employs a circular disc as the closure element. Mounted diametrically within the pipeline, the disc rotates around its axis within the cylindrical valve body channel. Its rotation angle ranges from 0° to 90°, with the valve fully open at 90°.

Connection Method: Featuring a block design, it secures to the pipeline using a matching clamp + seal ring, eliminating the need for complex bolts. Installation and removal take only minutes, effectively reducing production line downtime and making it suitable for scenarios requiring frequent cleaning.

Sealing Performance: The seal ring is made of hygienically certified materials such as silicone rubber, EPDM, or FPM. It offers strong leak prevention, resistance to acid and alkali corrosion, and resistance to aging, reducing seal failure rework.

Product Features: Simple structure, compact size, lightweight design allowing single-person installation; low operating torque, rapid response, adjustable flow control, and tolerance for media containing minor suspended particles without clogging.

Temperature Compatibility:EPDM seals: -20°C to 130°C (-4°F to 272°F), suitable for hot water cleaning and ambient temperature transfer. VMQ seals withstand temperatures from -50°C to 180°C, suitable for high-temperature sterilization and low-temperature refrigeration applications.

Application Areas: Specifically designed for dairy, food, pharmaceutical, brewing, and cosmetics industries. Materials and construction comply with industry hygiene standards, preventing media residue and bacterial growth while meeting regulatory requirements.
