China Sanitary Negative Pressure Pump manufacturer-Xinxiang Yinuo Machineries Co., Ltd.

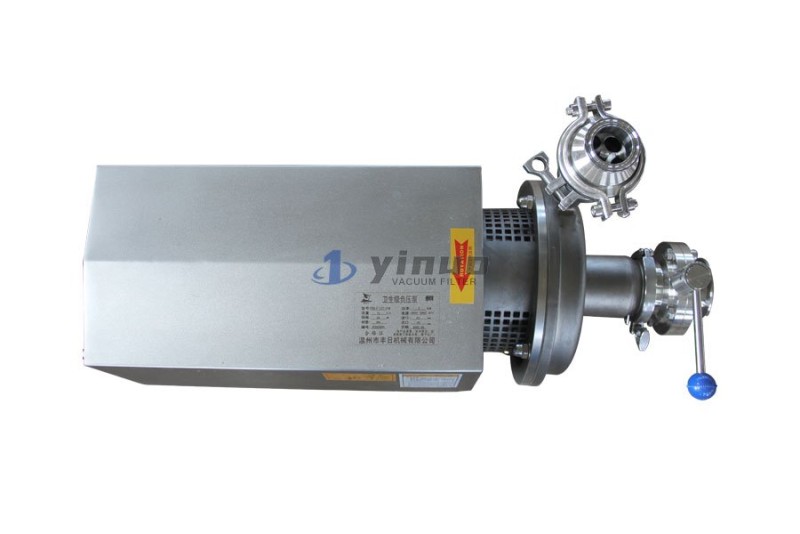

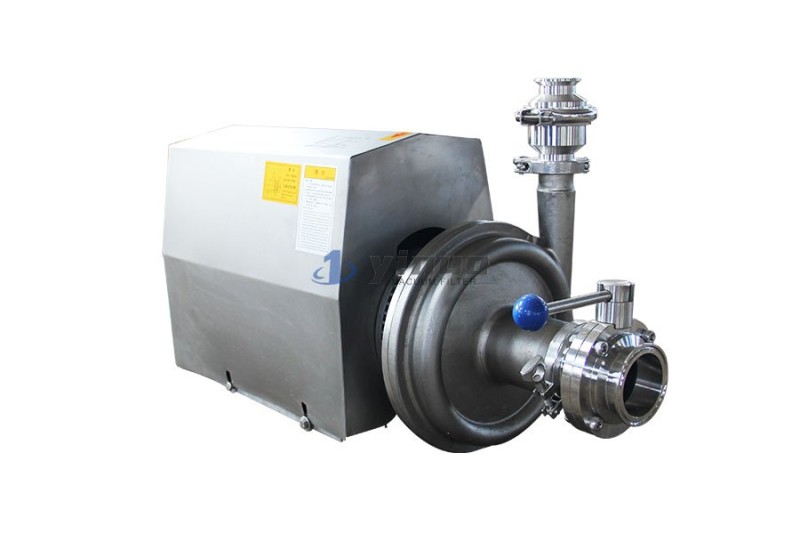

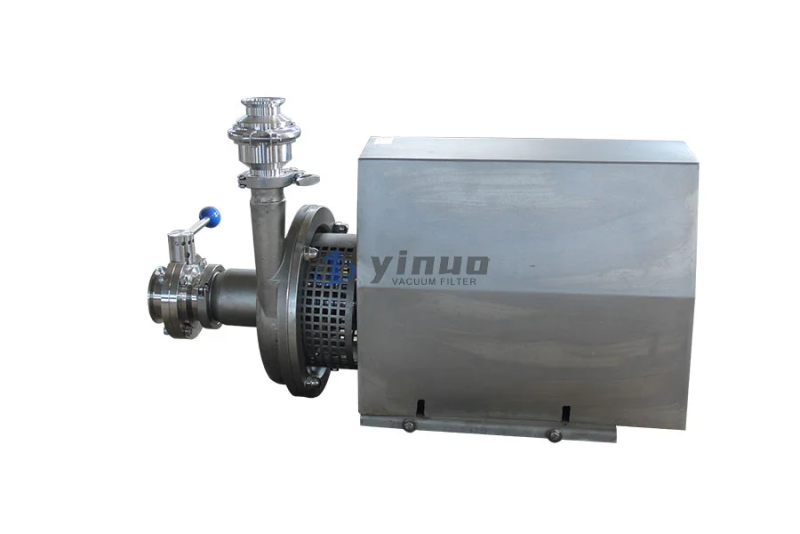

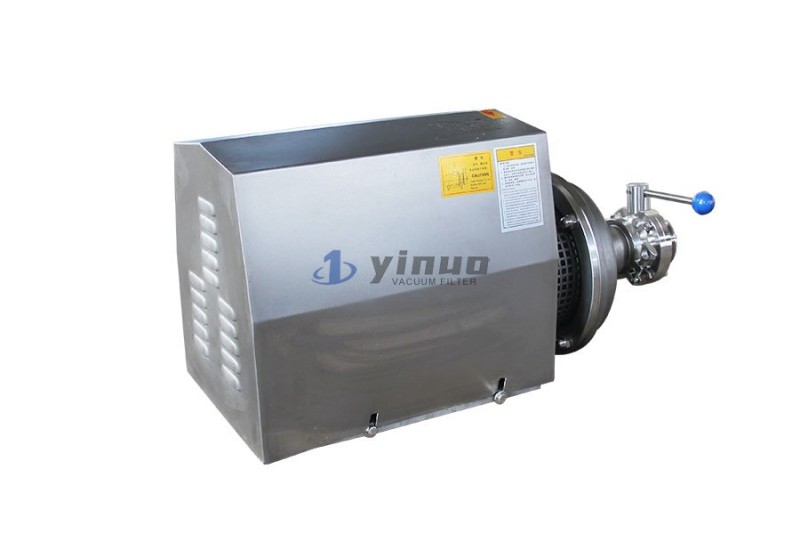

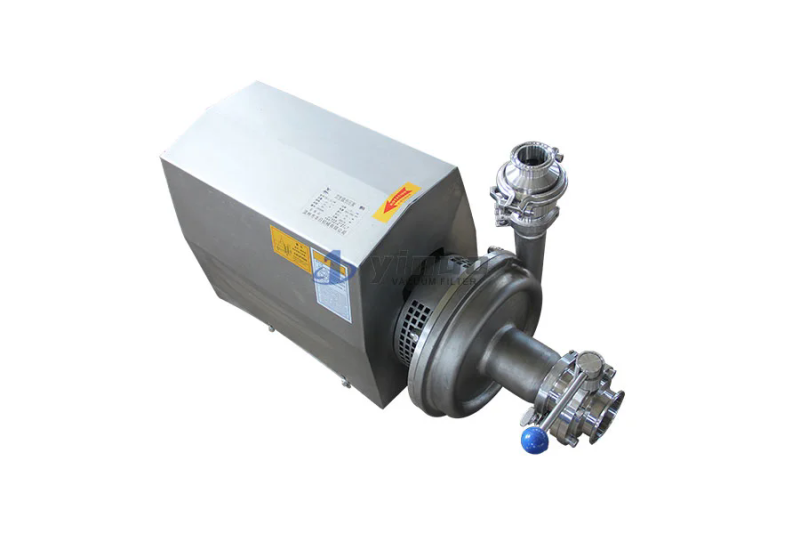

Sanitary Negative Pressure Pump is a vacuum supply system specifically designed for the operating conditions of rotary vacuum drum filters. It precisely supports the entire filtration, dewatering, and solid-liquid separation process and is widely used in food processing, biopharmaceuticals, fine chemicals, and environmentally friendly material purification, where strict requirements for cleanliness and operational stability must be met.
The primary function of a sanitary vacuum pump is to provide the rotary vacuum drum filter with a continuous and stable negative-pressure environment. It rapidly evacuates air from the drum chamber to maintain a consistent vacuum pressure differential, ensuring uniform material adhesion, rapid filtrate removal, and well-formed filter cakes. This effectively improves the overall filtration efficiency and product yield of the rotary vacuum drum filter.

Product Features

1. Optimized for Operating Conditions

Designed specifically for the intermittent feeding and continuous filtration characteristics of rotary vacuum drum filters, the pump quickly establishes a stable vacuum. The negative-pressure range is adjustable and controllable, with minimal fluctuations during operation. This helps prevent issues such as high filter cake moisture and uneven filtration caused by insufficient vacuum pressure or vacuum leakage, making it suitable for filtering materials with different viscosities and solid contents.

2. Sanitary Design with No Residue or Contamination

All components that come into contact with the process medium or airflow are made of 316L stainless steel and undergo internal and external mirror polishing for a smooth, hygienic surface. The design eliminates dead zones, gaps, and recesses where dust or material can accumulate. The pump uses a grease-free structure to prevent lubricant contamination of the processed material. It supports CIP (Clean-in-Place) and SIP (Sterilization-in-Place) systems, enabling rapid cleaning and sterilization while meeting the requirements of aseptic production.

3. Clog-Resistant and Corrosion-Resistant for Complex Materials

The optimized large-passage flow path allows small amounts of filtrate and fine particles to enter without easily causing blockages, reducing the need for frequent disassembly and cleaning. Combined with stainless steel construction and dedicated sanitary sealing components, the pump provides excellent resistance to acids, alkalis, corrosion, and temperature variations. It can handle acidic, mildly alkaline, and various corrosive filtrates, making it suitable for diverse material processing applications with rotary vacuum drum filters.

4. Excellent Sealing Performance Prevents Vacuum Leakage

The pump features a food-grade sanitary mechanical seal that maintains reliable sealing performance under negative-pressure conditions. It prevents ambient air and microorganisms from entering the system, helping maintain a stable vacuum level inside the drum filtration chamber. Standard quick-connect fittings allow easy installation and removal while providing reliable sealing. The system is designed for long-term operation without leakage or vacuum pressure loss.

5. Low Energy Consumption, Low Noise, and Long Service Life

The compact and streamlined design provides high transmission efficiency and lower energy consumption than conventional vacuum pumps, delivering significant energy savings during long-term operation. Low vibration and noise levels, without high-frequency operating noise, make the pump suitable for continuous production environments. Precision-engineered core components provide excellent wear resistance and durability, reducing the risk of failure and enabling stable 24/7 continuous operation.

Product Advantages

1. High Production Efficiency

Specifically designed for rotary vacuum drum filters, the pump provides rapid vacuum generation and stable negative pressure, effectively shortening the dewatering and filter cake formation cycles while increasing the equipment's throughput per unit of time. A stable vacuum environment enables more complete solid-liquid separation, significantly reduces filter cake moisture content, and minimizes material loss, improving the capacity of the entire filtration line at its core.

2. Product Compliance

The clean, oil-free, impurity-free negative-pressure air supply system eliminates material contamination caused by oil leakage and buildup in conventional vacuum pumps. It fully meets the requirements for hygienic and aseptic production in industries such as food processing, pharmaceuticals, and fine chemicals, helping ensure product quality compliance and reduce quality-related risks.

3. Lower Overall Operating Costs

The sanitary quick-connect design allows rapid disassembly, cleaning, inspection, and maintenance without specialized tools, significantly reducing equipment downtime. The pump is clog-resistant and durable, with a low failure rate and no need for frequent replacement of components. Its energy-efficient operation also helps reduce equipment maintenance costs, labor costs, and overall production energy consumption.

4. Wide Range of Applications

The pump is compatible with various models of rotary vacuum drum filters and can operate reliably in a wide range of solid-liquid separation applications, from conventional material filtration to high-viscosity, fine-particle, and corrosive materials. It is widely used in food and beverage processing, biopharmaceuticals, chemical raw materials, wastewater treatment, mineral purification, and other industries, offering excellent versatility and application flexibility.

5. Enhanced Operating Stability

Optimized for the continuous operation and fluctuating working conditions of rotary vacuum drum filters, the pump offers strong load-handling capability and smooth start-up and shutdown. It maintains stable negative pressure even when material feed rates fluctuate, preventing disruptions to the filtration process. Low-vibration operation with stable temperature control helps maintain the normal operating cycle of the filter and ensures continuous and reliable production.
