Product Introduction

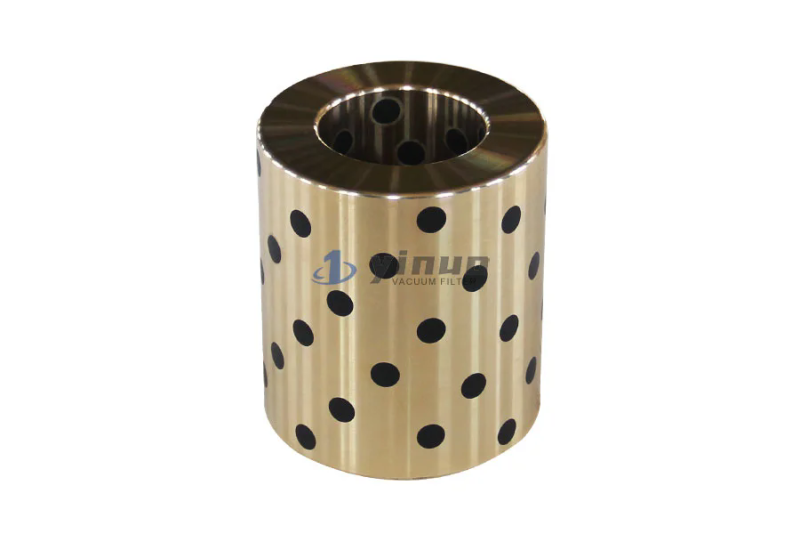

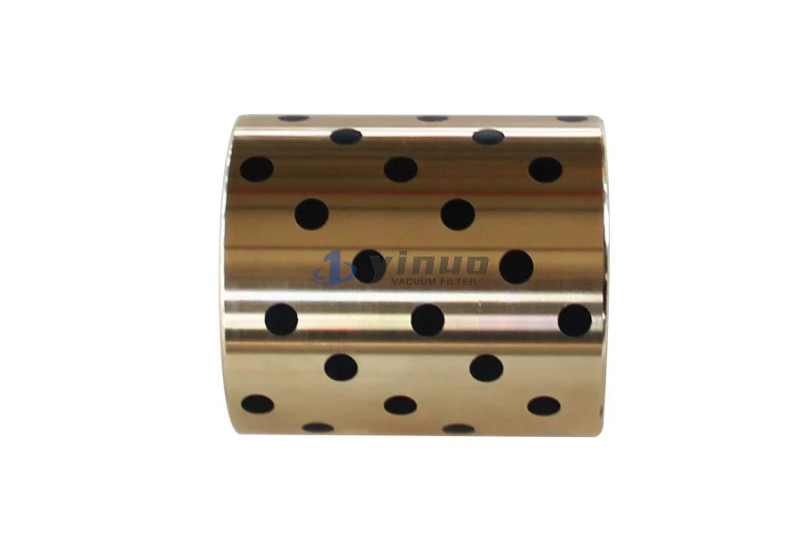

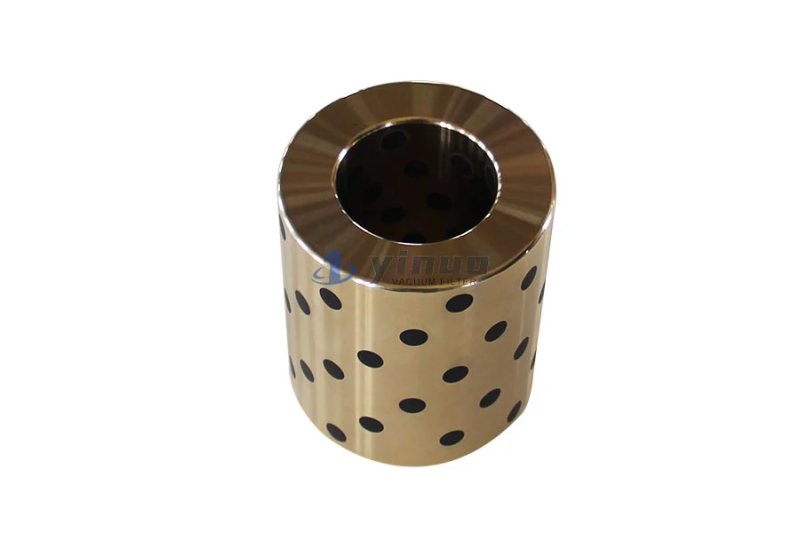

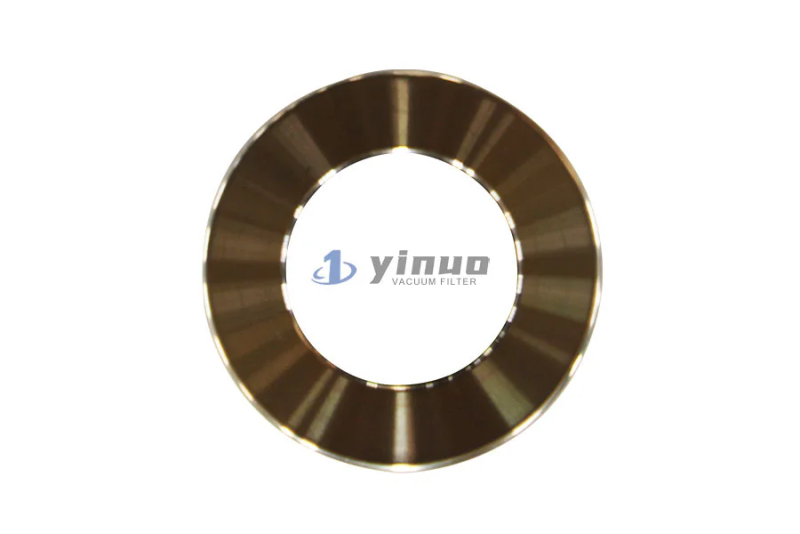

Graphite Copper Bushing is a commonly used wear-resistant sliding component for heavy-duty industrial equipment. It is manufactured from high-quality copper alloys, such as high-strength brass, tin bronze, and aluminum bronze, through precision casting and machining. High-purity solid graphite is embedded into the inner wall of the bushing, eliminating the need for continuous lubrication with oil or grease. This makes it suitable for equipment operating in conditions where continuous lubrication is unavailable or routine maintenance is difficult.

As friction generates heat during operation, a small amount of embedded graphite is released onto the contact surface between the bushing and shaft, forming a stable solid lubricating layer. This provides continuous dry-running self-lubrication and effectively helps prevent common problems such as shaft scoring, bushing seizure, and sticking or jamming caused by lubricant film failure.

Key Advantages of Graphite Copper Bushings

1. Low Maintenance Requirements

The integrated graphite-embedded design eliminates the need for oil supply lines and frequent lubrication with oil or grease. A lubricating layer forms automatically when the equipment starts operating, eliminating issues such as oil leakage, dust accumulation, workpiece contamination, and lubricant drying or failure. The bushing is suitable for equipment with limited installation space or where a lubrication system cannot be installed. It significantly reduces routine maintenance requirements while saving substantial costs for lubricants and manual servicing over the long term.

2. Long Service Life

The bronze alloy substrate offers high hardness and excellent compressive strength, making it resistant to deformation, cracking, or loosening under long-term heavy loads, impact loads, and edge loading conditions. Combined with graphite's excellent wear-reducing and anti-seizure properties, the bushing provides a low coefficient of friction and smooth operation without low-speed stick-slip or binding. Its actual wear life in service is significantly longer than that of conventional pure copper or iron-based bushings, reducing the frequency of component replacement.

3. Wide Range of Operating Conditions

This bushing eliminates the operating limitations associated with conventional grease-lubricated components and can operate reliably in harsh conditions, including temperature fluctuations, high dust levels, moisture, standing water, and mildly corrosive environments. It avoids problems such as lubricant solidification at low temperatures, leakage at high temperatures, and lubricant degradation or failure. The bushing also provides good impact resistance, cushioning, and vibration damping, making it suitable for equipment subjected to frequent starts and stops, repeated oscillation, and continuous operation.

4. Stable Dimensional Accuracy

With mature precision machining processes, the bushing features tight dimensional tolerances, a smooth inner surface, and a precise fit after installation. Uniform and stable operating clearances help maintain the long-term accuracy of equipment transmission and articulated mechanisms. We can adjust the copper alloy composition according to actual operating conditions. Different substrate materials can be selected for specific applications, including conventional heavy-duty service, marine corrosion protection, and high-temperature metallurgical environments. This high level of customization provides greater versatility and practical value.

5. Low Failure Rate

The bushing effectively addresses failures caused by dry running due to insufficient lubrication, such as shaft scoring, shaft seizure, sticking, and unexpected equipment shutdowns. This helps reduce equipment failures and maintenance downtime, ensuring continuous and stable production. Its maintenance-free lubrication design not only saves significant labor and consumable costs but also prevents oil contamination of workpieces and keeps the working environment cleaner. As a result, it delivers lower overall operating costs and excellent cost-effectiveness.

Applications of Graphite Bronze Bushings

Graphite bronze bushings are suitable for a wide range of demanding operating conditions, including oil-free lubrication, heavy-load applications, high-dust environments, extreme temperatures, and humid or corrosive conditions. They are widely used in industrial equipment such as construction machinery, mining and metallurgy equipment, rubber and plastic injection molding machines, marine equipment, agricultural and forestry machinery, and automated machine tools.

These bushings are primarily used in critical wear points involving articulation, sliding, and rotary transmission. They provide reliable wear resistance and self-lubrication, making them versatile wear-resistant components for a wide range of industrial machinery and equipment.
