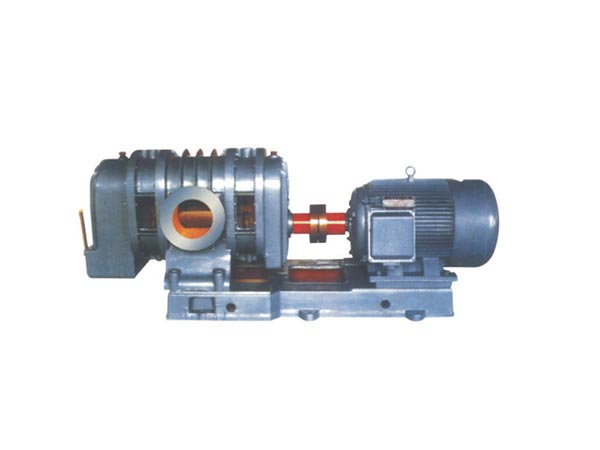

China L Series Roots Blowers manufacturer-Xinxiang Yinuo Machineries Co., Ltd.

Applications and Features:
1. L Series Roots Blowers are energy-saving positive displacement rotary blowers developed as part of our ninth batch of energy-efficient products. Their main advantages include minimal flow variation when the pressure is adjusted within the allowable range, a wide operating pressure range, and forced gas delivery characteristics. The conveyed medium is oil-free, with a simple structure, easy maintenance, long service life, and low vibration.
2. L Series Roots Blowers are designed for conveying clean air, clean coal gas, carbon dioxide, and other inert gases. They are widely used in various industrial sectors, including metallurgy, chemical processing, fertilizer production, building materials, petroleum, mining, textile, municipal gas supply, pneumatic conveying, wastewater treatment, and aquaculture.
The L Series Roots Blower offers a flow range of 1.46 m³/min to 82.1 m³/min and a pressure rise range of 9.8 kPa to 68.6 kPa. Detailed performance specifications, structural drawings, and installation dimensions are provided in the relevant technical documents.
Working Principle:
Inside the blower casing, the two rotors rotate in opposite directions through synchronized gears. Proper operating clearances are maintained between the rotors and between the rotors and the housing, forming isolated suction and discharge chambers (with minimal internal leakage).
As the rotors rotate, gas is drawn into the suction chamber and transported to the discharge chamber without internal compression, where it is then discharged from the blower housing. This continuous process generates the required air flow and pressure for gas conveying.

Performance Parameters：

Fan Model	Rotational speed n (r/min)	Pressure rise ΔP		Inlet flow rate Q (m³/min)	Shaft power Ne (kW)	Matching motor		Main unit weight (kg, excluding motor)
Fan Model	Rotational speed n (r/min)	kPa	mmH₂O	Inlet flow rate Q (m³/min)	Shaft power Ne (kW)	Model	Power (kW)	Main unit weight (kg, excluding motor)
L21LD	1450	9.8	1000	2.33	0.58	Y90S-4	1.1	95
		19.6	2000	2.04	1.17	Y90L-4	1.5	95
		29.4	3000	1.83	1.75	Y100L1-4	2.2	95
		39.2	4000	1.64	2.33	Y100L2-4	3	95
		49	5000	1.46	2.92	Y112M-4	4	95
	2950	9.8	1000	5.77	1.19	Y90S-2	1.5	95
		19.6	2000	5.48	2.37	Y100L-2	3	95
		29.4	3000	5.26	3.56	Y112M-2	4	95
		39.2	4000	5.07	4.75	Y132S1-2	5.5	95
		49	5000	4.89	5.94	Y132S2-2	7.5	95
L22LD	1450	9.8	1000	3.30	0.79	Y90L-4	1.5	175
		19.6	2000	2.98	1.59	Y100L1-4	2.2	175
		29.4	3000	2.73	2.38	Y100L2-4	3	175
		39.2	4000	2.51	3.17	Y112M-4	4	175
		49	5000	2.30	3.97	Y132S-4	5.5	175
	2950	9.8	1000	7.97	1.61	Y90L-2	2.2	175
		19.6	2000	7.66	3.23	Y112M-2	4	175
		29.4	3000	7.40	4.84	Y132S1-2	5.5	175
		39.2	4000	7.18	6.46	Y132S2-2	7.5	175
		49	5000	6.97	8.07	Y160M1-2	11	175
L23LD	1450	9.8	1000	4.49	1.1	Y90L-4	1.5	190
		19.6	2000	4.32	2.19	Y100L2-4	3	190
		29.4	3000	4.03	3.29	Y112M-4	4	190
		39.2	4000	3.76	4.39	Y132S-4	5.5	190
		49	5000	3.53	5.49	Y132M-4	7.5	190
	2950	9.8	1000	10.9	2.23	Y100L-2	3	190
		19.6	2000	10.8	4.46	Y132S1-2	5.5	190
		29.4	3000	10.5	6.7	Y132S2-2	7.5	190
		39.2	4000	10.2	8.93	Y160M1-2	11	190
L32LD	1450	9.8	1000	7.92	1.84	Y100L1-4	2.2	430
		19.6	2000	7.30	3.68	Y132S-4	5.5	430
		29.4	3000	6.81	5.52	Y132M-4	7.5	430
		39.2	4000	6.38	7.36	Y160M-4	11	430
		49	5000	5.99	9.20	Y160M-4	11	430
L33LD	1450	9.8	1000	10.8	2.47	Y100L2-4	3	470
		19.6	2000	10.1	4.93	Y132S	5.5	470
		29.4	3000	9.54	7.40	Y160M-4	11	470
		39.2	4000	9.04	9.86	Y160M-4	11	470
		49	5000	8.57	12.3	Y160L-4	15	470
L41LD	980	9.8	1000	6.59	1.62	Y112M-6	2.2	580
		19.6	2000	5.77	3.23	Y132M1-6	4	580
		29.4	3000	5.11	4.85	Y132M2-6	5.5	580
		39.2	4000	4.52	6.46	Y160M-6	7.5	580
		49	5000	3.97	8.08	Y160L-6	11	580
	1450	9.8	1000	11.0	2.39	Y100L2-4	3	580
		19.6	2000	10.2	4.78	Y132S-4	5.5	580
		29.4	3000	9.52	7.17	Y160M-4	11	580
		39.2	4000	8.93	9.56	Y160M-4	11	580
		49	5000	8.38	12	Y160L-4	15	580
L42LD	980	9.8	1000	10.5	2.43	Y132S-6	3	660
		19.6	2000	9.52	4.85	Y132M2-6	5.5	660
		29.4	3000	8.75	7.27	Y160L-6	11	660
