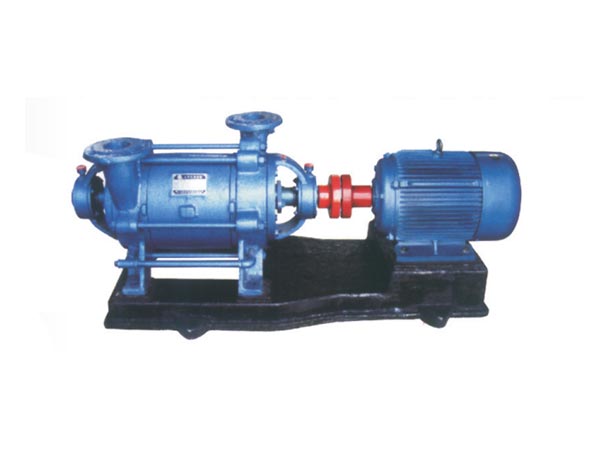

SZ and SZJ Series Vacuum Pumps and Compressors

Water ring pumps are liquid ring positive displacement pumps that use water as the working fluid. They feature a simple structure, reliable operation, easy operation and maintenance, and a wide range of applications.

Applications and Features:
Water ring pumps are liquid ring positive displacement pumps that use water as the working fluid. They feature a simple structure, reliable operation, easy operation and maintenance, and a wide range of applications.
These pumps are suitable for conveying gases that do not contain solid particles, are insoluble in water, and have a temperature range of -10°C to 60°C.
They are ideal vacuum equipment for vacuum dewatering, vacuum drying, vacuum filtration, and gas compression in industries such as papermaking, tobacco, food processing, textile, metallurgy, coal, and chemical processing.
Vacuum Pump Performance Parameters:

Model	Gas volume at different vacuum levelsm³/min					Ultimate Vacuum (kPa)	Water consumption (L/min)	Rotational speed (r/min)	Motor power (kW)	Motor Model	Pump weight (kg)
Model	101.33 KPa	60.8 KPa	40.53 KPa	20.27 KPa	10.14 KPa	Ultimate Vacuum (kPa)	Water consumption (L/min)	Rotational speed (r/min)	Motor power (kW)	Motor Model	Pump weight (kg)
SZ-1	1.62	0.69	0.43	0.31	-	16	10	1450	4	Y112M-4	95
SZ-1J	1.5	1.48	1.36	0.92	-	12.83	10	1450	4	Y112M-4	140
SZ-2	3.67	1.78	1.02	0.27	-	13.34	30	1450	7.5	Y132M-4	120
SZ-2J	3.6	3.6	3.32	2.2	-	12.83	30	1450	7.5	Y132M-4	150
SZ-3J	12	12	11.3	9.8	7.8	5.33	70	980	18.5	Y200L-4	463
SZ-4J	33.7	33.7	31.5	28.1	17	8	100	730	55	Y315S-4	975

Compressor performance parameters:

Model	Gas volume at different discharge pressuresm³/min					Maximum discharge pressure KPa	Water consumption L/min	Rotational speed (r/min)	Motor power (kW)	Motor Model	Pump weight (kg)
Model	0KPa	49.03KPa	78.45KPa	98.07KPa	147.1KPa	Maximum discharge pressure KPa	Water consumption L/min	Rotational speed (r/min)	Motor power (kW)	Motor Model	Pump weight (kg)
SZ-1	1.62	1.08	−	−	−	98.07	10	1450	5.5	Y132S-4	95
SZ-1J	1.62	1.08	−	−	−	98.07	10	1450	5.5	Y132S-4	140
SZ-2	3.67	2.8	2.16	1.62	−	137.3	30	1450	15	Y160L-4	120
SZ-2J	3.67	2.8	2.16	1.62	−	137.3	30	1450	15	Y160L-4	150
SZ-3J	12.4	9.92	9.16	8.09	3.77	205.94	70	980	45	Y280S-6	463
SZ-4J	33.2	31.8	28.8	26.4	12.4	205.94	150	730	75	Y315M₁-8	975
