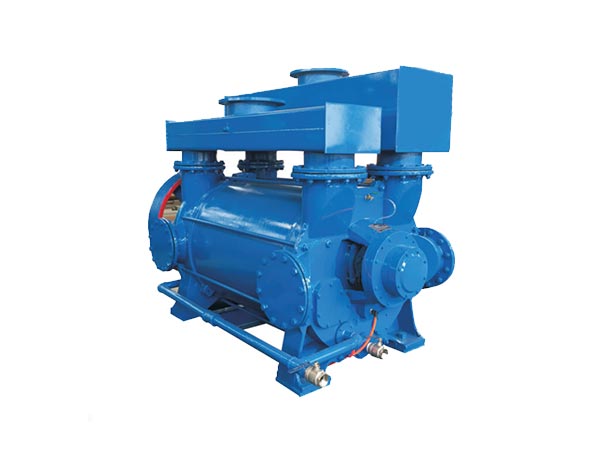

China 2B Series Water Ring Vacuum Pumps and Compressors price-Xinxiang Yinuo Machineries Co., Ltd.

Purpose and Features
The 2BE series water ring vacuum pumps and compressors are high-efficiency and energy-saving products independently developed by our company. Drawing upon years of scientific research and manufacturing experience, we have integrated cutting-edge technologies of international equivalent products.
These units are generally used to pump non-corrosive gases free of solid particulates and insoluble in water, generating vacuum or positive pressure inside sealed vessels. With structural material upgrades, they can also handle corrosive gases or adopt corrosive liquid as the working fluid. They are widely used in papermaking, chemical engineering, petrochemicals, light industry, pharmaceuticals, food processing, metallurgy, building materials, stone processing, coal washing, mineral processing, chemical fertilizer production and other industries.
This series features a single-stage, single-acting structure. It boasts a simple construction, easy maintenance, reliable operation and outstanding energy efficiency. It can withstand harsh working conditions including large water discharge capacity and fluctuating load impacts.
We have carried out systematic optimized design for key components including distribution plates, impellers and pump shafts. The simplified structure greatly enhances performance and reduces energy consumption. Impellers are made of ductile cast iron or fabricated by welding. Blades are stamped and formed in one step with optimized profile lines. Fully machined wheel hubs fundamentally eliminate dynamic balance problems. The impeller is mounted onto the pump shaft via shrink fit interference connection to guarantee stable performance and smooth rotation.
Welded impellers undergo integral heat treatment, which greatly improves the toughness of blades. The blades gain excellent resistance to impact and bending, making the pumps perfectly suitable for working conditions with drastic load fluctuations.
The 2BE pump is equipped with an integrated gas-water separator. Suction and discharge ports are available at multiple positions. The pump cover is fitted with an inspection window for the exhaust valve. The clearance between impeller and distribution plate can be adjusted via gland covers on both sides of the positioning bearing. The equipment is easy to install, operate and maintain.

Performance Parameters

Model	Minimum absolute suction pressure (hPa)	Pump speed r/min	Maximum Airflow m³/min	Motor power kW	Transmission type	Motor voltage V	Weight kg	Suction inlet diameter mm	Discharge diameter mm
2BEA103	33	1300	4.93	11	Belt	380	125	80	80
		1450	5.5	11	Coupling	380	125
		1625	6.23	15	Belt	380	125
		1750	6.7	15	Belt	380	125
2BEA153	33	1100	7.33	15	Belt	380	190	100	100
		1300	8.8	18.5	Belt	380	190
		1450	9.82	18.5	Coupling	380	190
		1620	10.8	22	Belt	380	190
		1750	11.4	30	Belt	380	190
2BEA202	33	790	9.5	18.5	Belt	380	850	125	125
		880	11	18.5	Belt	380	850
		980	12	22	Coupling	380	925
		1100	14	30	Belt	380	945
		1170	15	30	Belt	380	945
2BEA203	33	790	14	30	Belt	380	995	125	125
		880	16	30	Belt	380	995
		980	18	37	Coupling	380	1065
		1100	20	45	Belt	380	1085
		1170	21	45	Belt	380	1085
2BEA252	33	558	20	30	Belt	380	1460	150	150
		660	25	37	Belt	380	1515
		740	28	45	Coupling	380	1693
		820	30	55	Belt	380	1645
		880	33	75	Belt	380	1805
2EEA253	33	560	28	45	Belt	380	1695	150	150
		590	30	55	Belt	380	2190
		660	35	55	Belt	380	1785
		740	39	75	Coupling	380	2215
		820	43	90	Belt	380	2055
2BEA303	33	466	43	55	Belt	380	2645	200	200
		520	45	75	Belt	380	2805
		590	52	75	Coupling	380	3080
		660	58	90	Belt	380	2925
		740	62	110	Coupling	380	3160
2BEA353	33	390	55	75	Belt	380	3560	250	250
		415	58	90	Belt	380	3665
		464	65	110	Belt	380	3905
		520	72	132	Belt	380	4040
		590	81	160	Coupling	380	4750
2BEC400	160	300	68	75	Reducer or belt	380	4960	300	300
		323	80	90		380	5060
		367	85	110		380	5290
		393	92	110		380	5400
		449	110	132		380	5540
2BEC420	160	300	90	110	Reducer or belt	380	5740	300	300
		330	110	132		380	5870
		360	120	132		380	5920
		390	126	160		380	6195
		420	134	185		380	6335
2BEC500	160	242	125	160	Speed reducer	380	8715	350	350
		266	145	185		380	9070
		294	165	200		380	9075
		336	190	250		6KV	11320
		372	210	280		6KV	11570
2BEC520	160	236	150	185	Speed reducer	380	9730	350	350
		266	165	220		6KV	11980
		294	205	250		6KV	11980
		336	235	280		6KV	12150
		372	250	315		6KV	12615
2BEC600	160	200	180	185	Speed reducer	380		400	400
		236	210	250		6KV
		266	240	280		6KV
		294	260	315		6KV
		336	285	350		6KV
2BEC620	160	200	220	220	Speed reducer	6KV		400	400
		236	255	280		6KV
		266	290	350		6KV
		294	320	400		6KV
		336	360	450		6KV
2BEC670	160	170	305	315	Speed reducer	6KV		500	500
		200	370	450		6KV
		236	440	560		6KV
		266	500	630		6KV
		294	560	800		6KV

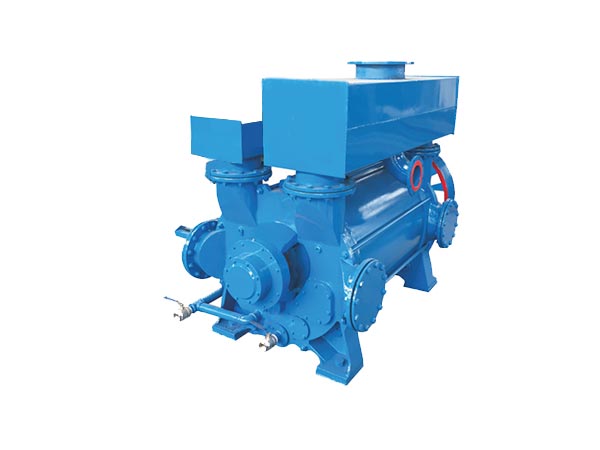

2BE Series Water Ring Compressors

2BE Series Water Ring Compressors

Model	Pump speed r/min	Maximum discharge pressure (MPaG)	Operating pressure range MPaG	Gas flow rate (m³/min) at a discharge pressure of 0.1 MPaG	Motor power kW	Suction inlet diameter mm	Discharge diameter mm	Remark
2BE202	980	0.12	0.012-0.12	11	37	125	125
2BE203	980	0.12	0.012-0.12	16	55	125	125
2BE252	740	0.14	0.012-0.14	22	75	150	150
2BE253	740	0.14	0.012-0.14	30	90	150	150
2BE305	660	0.12	0.05-0.12	65	185	200	200	Belt-driven speed reducer transmission
2BE355	530	0.12	0.05-0.12	85	250	250	250	Belt-driven speed reducer transmission for 6kV motor
2BE405	420	0.12	0.05-0.12	110	315	300	300	Belt-driven speed reducer transmission for 6kV motor
2BE505	372	0.12	0.05-0.12	160	450	350	300	Belt-driven speed reducer transmission for 6kV motor
