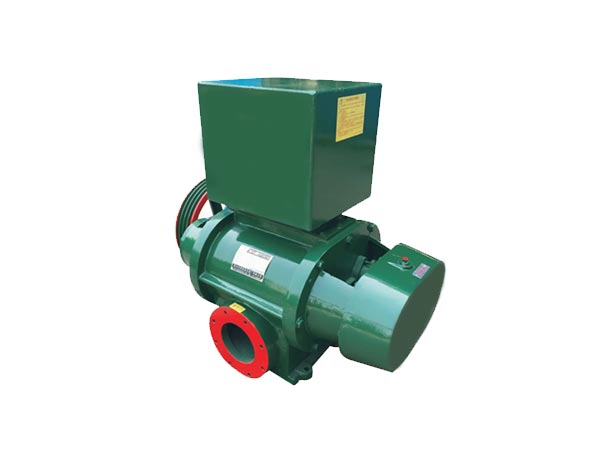

ZBK Series Roots Vacuum Pump

The ZBK series Roots vacuum pump is a rough vacuum generating device. It is widely applied in the paper-making, chemical, pharmaceutical, building material, food, photographic printing, and sugar refining industries. It serves as the ideal equipment for vacuum dewatering in suction boxes of the cylinder section or wire section of fourdrinier paper machines in the paper industry.

Purpose and Features
The ZBK series Roots vacuum pump is a rough vacuum generating device. It is widely applied in the paper-making, chemical, pharmaceutical, building material, food, photographic printing, and sugar refining industries. It serves as the ideal equipment for vacuum dewatering in suction boxes of the cylinder section or wire section of fourdrinier paper machines in the paper industry.
Compared with water ring vacuum pumps in such applications, the 2BK series Roots vacuum pumps deliver greater pumping speed, higher efficiency, compact structure, small footprint, easy maintenance, long service life and lower power consumption.
The pump can handle dry air, moist air and air-water mixtures. However, the pumped medium must be free of particulate solids, high-concentration dust and corrosive substances.

Performance Parameters:

Basic Parameters		Roots vacuum pump models
Name	Unit	ZBK33	ZBK13	ZBK15	ZBK16	ZBK16B	ZBK17	ZBK18
Maximum pumping speed	m³/min	3.8	6	10	15	20	30	60
Rated pumping speed	m³/min	3.1	4.2	7.5	11	16	22	47
Rated vacuum level	KPa	33.3	33.3	40	40	40	45	47
Rated speed	r/min	500	400	450	400	550	400	550
Inlet and outlet diameters	mm	φ85	φ125	φ150	φ200	φ200	φ250	φ300
Compatible motor		Y112M-4 4KW	Y160M-6 7.5KW	Y160L-4 15KW	Y200L₂-6 22KW	Y225M-6 30KW	Y280S-6 45KW	Y315M-6 90KW
Uses V-belts		Type B 1550	Type B 2800	Type B 2800	Type B 3550	Type B 4000	Type D 4500	Type D 4000
Weight	kg	200	440	535	890	890	2100	3500
Overall dimensions (Length x Width x Height)	mm	682×359×575	906×583×915	967×578×950	1019×748×1205	1019×748×1205	1340×875×1550	2205×2934×2190
